1100°C calcium silicate insulation blocks based on xonotlite (6CaO·6SiO₂·H₂O), specifically designed for cement industry applications including cement kilns and preheaters. Density 250–330 kg/m³, standard block size 300 × 150 × 50 mm.
These 1100°C calcium silicate insulation blocks are specifically engineered for the cement industry, providing reliable thermal insulation for cement kilns, preheaters and other high-temperature cement processing equipment.
Based on xonotlite (6CaO·6SiO₂·H₂O), these blocks offer superior temperature resistance compared to ordinary calcium silicate materials, with a long-term service temperature of 1000°C.

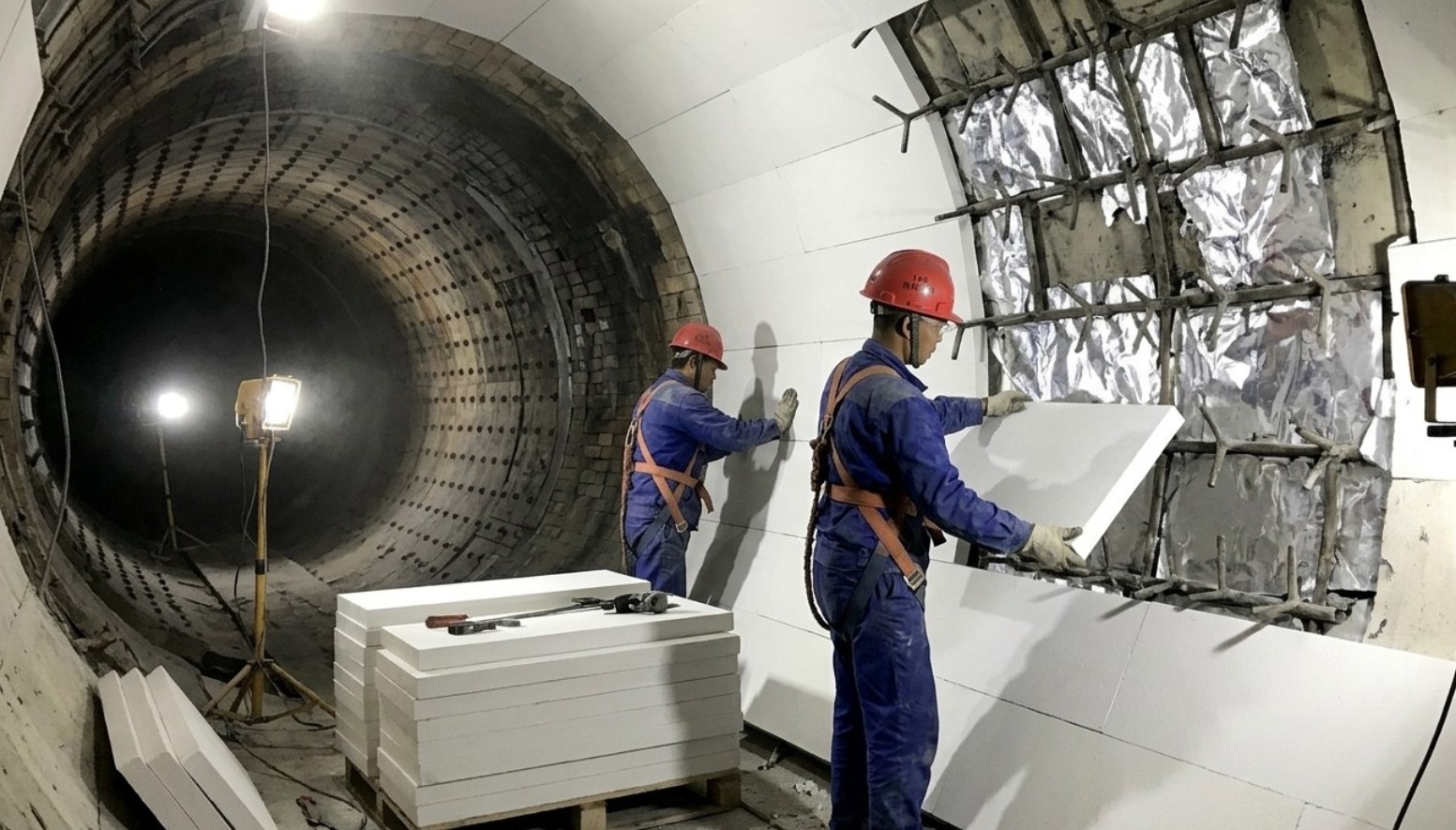

The compact block format (standard size 300 × 150 × 50 mm) allows for easy installation and precise fitting in cement kiln linings and preheater systems.
Standard Size: 300 × 150 × 50 mm (standard block size). Board sizes also available: 1230 × 500 mm, 1200 × 600 mm, 1080 × 950 mm, 1000 × 500 mm, 600 × 300 mm, thickness 25–125 mm (custom sizes available)
High temp 1100°C calcium silicate blocks cement industrykg/m³ — manufactured by HR RHINO
Non-asbestos 1100°C Calcium Silicate Board, density: 500 kg/m³
| SiO₂ | % | 52 Min |
| CaO | % | 40 Min |
| Al₂O₃ | % | 0.3 Max |
| Fe₂O₃ | % | 1.0 Max |
| Bulk Density | kg/m³ | 250–330 |
| Flexural Strength | MPa | ≥ 0.60 |
| Thermal Conductivity | W/m·K | ≤ 0.058 + 0.00011t |
| Long-term Service Temperature | °C | 1000 |
| Linear Thermal Shrinkage | % | ≤ 1.5 (1000°C, 3h) |
| Length mm (±2mm) | Width mm (±2mm) | Thickness mm (±2mm) |
| 300 (Block) | 150 | 50 |
| 1230 | 500 | 25–100 |
| 1200 | 600 | 25–100 |
| 1080 | 950 | 25–100 |
| 1000 | 500 | 25–125 |
| 600 | 300 | 25–125 |
